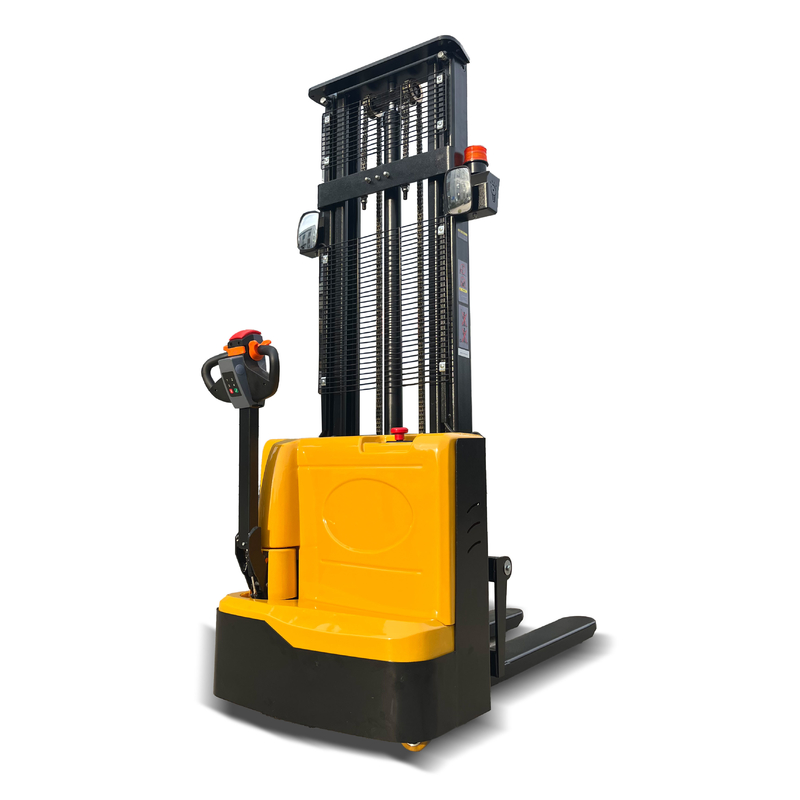

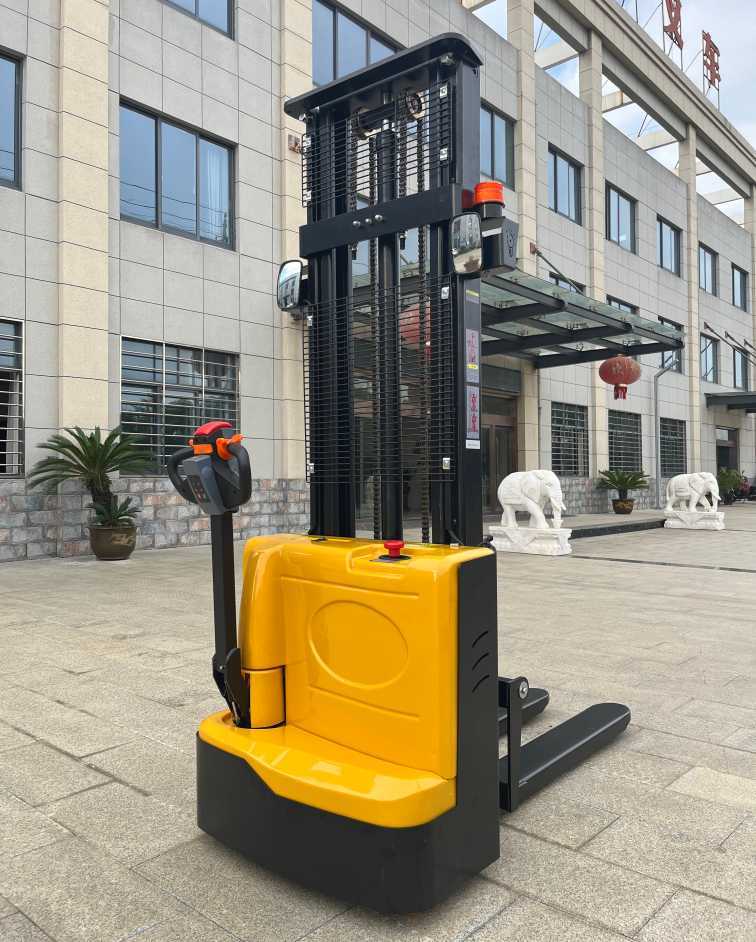

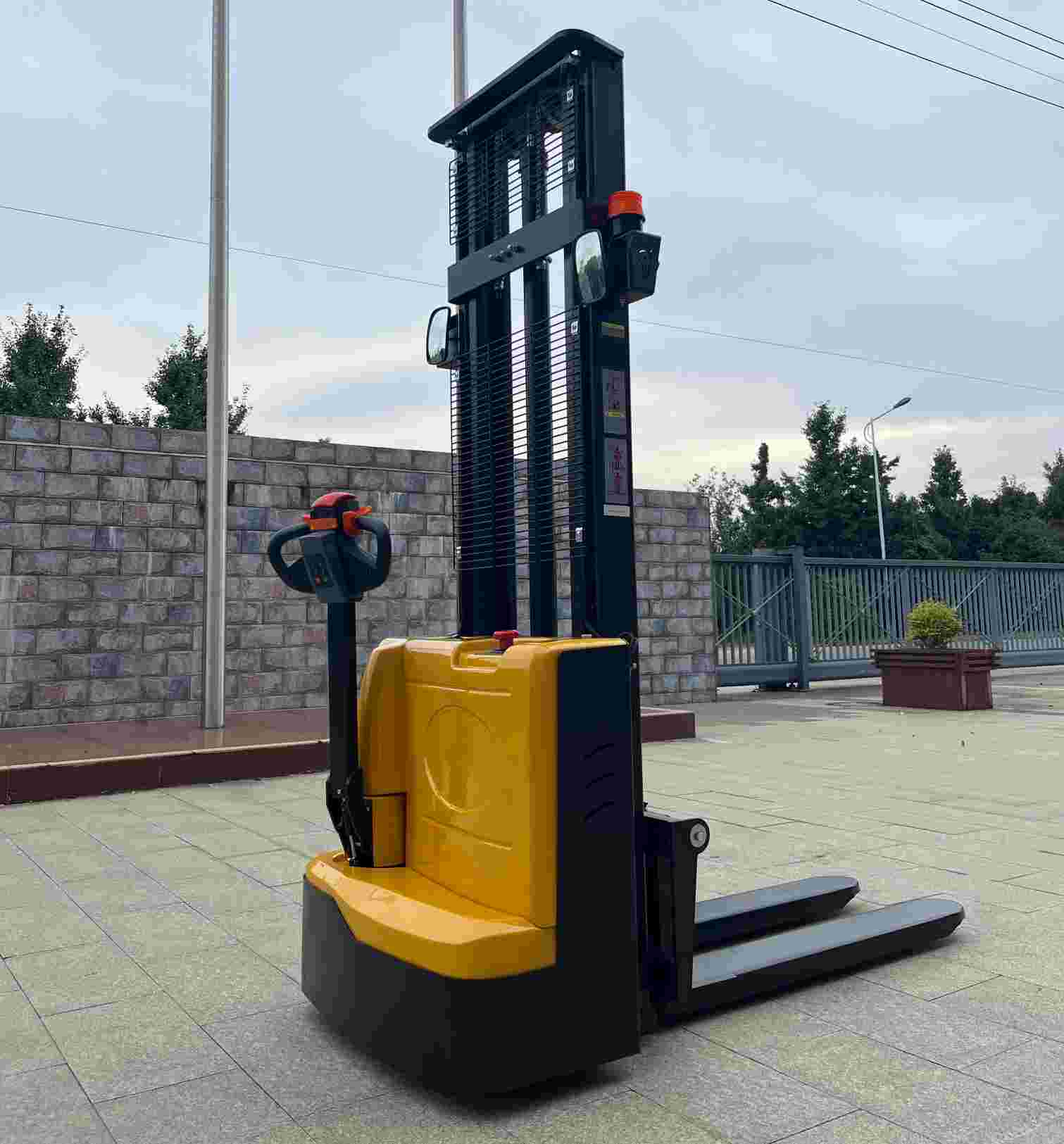

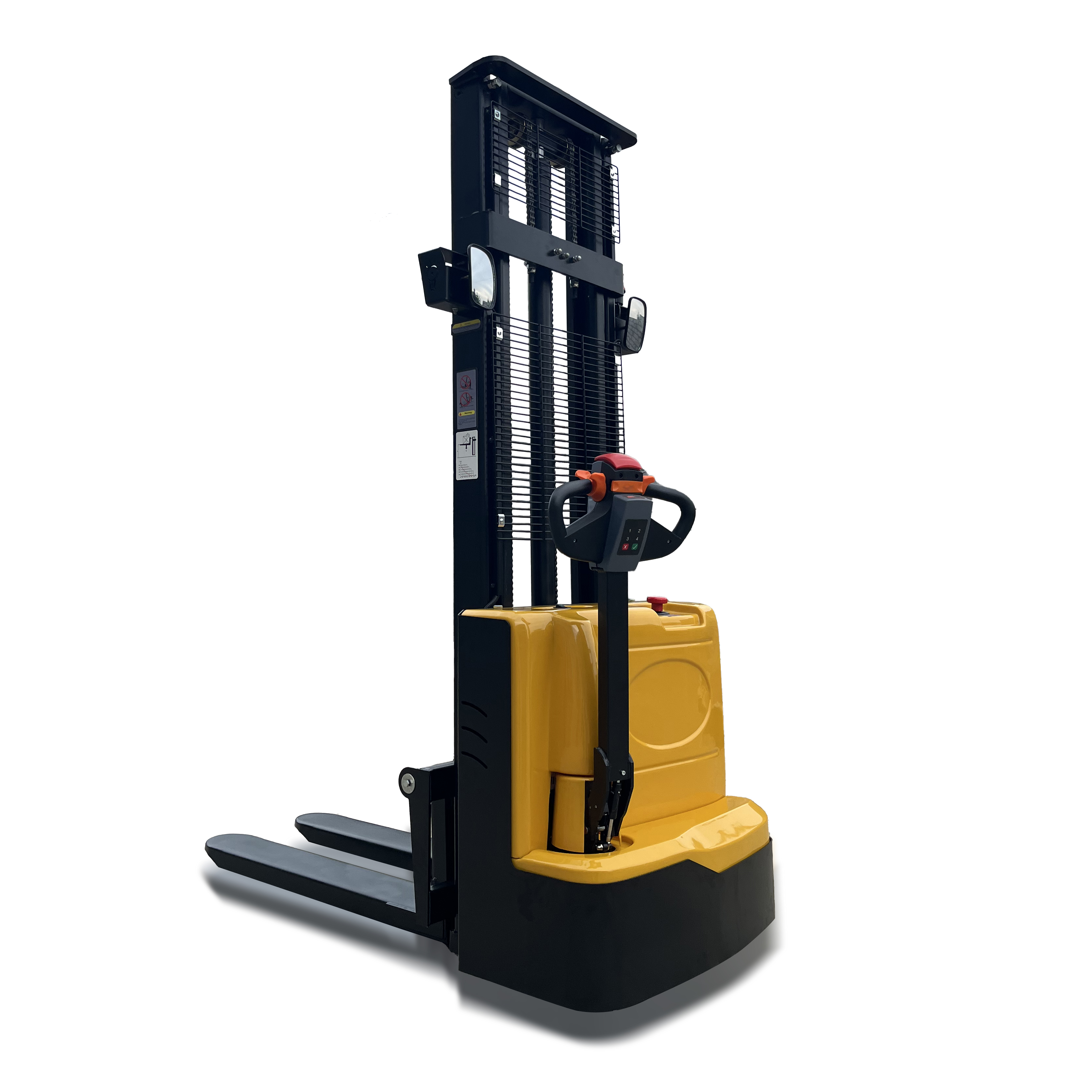

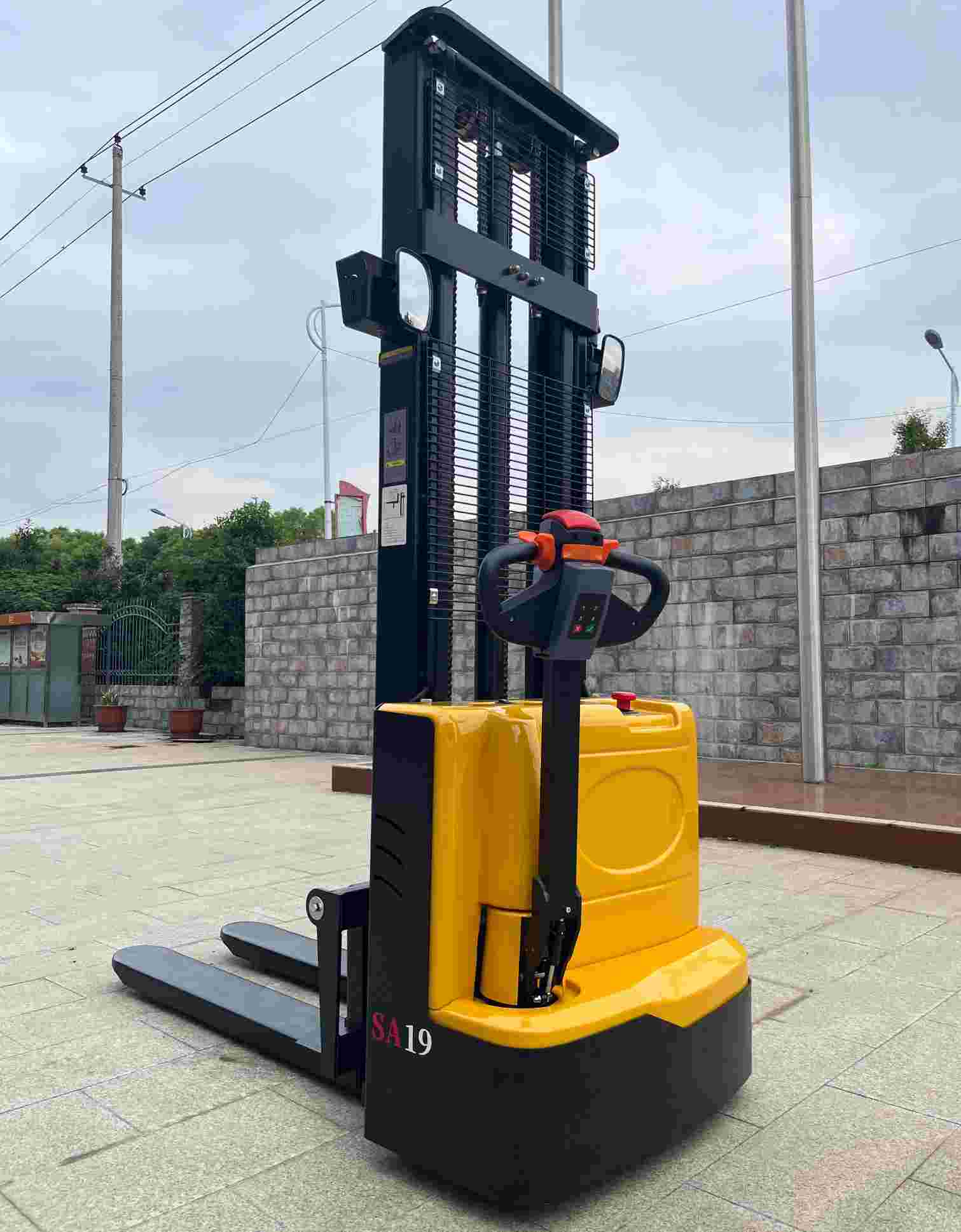

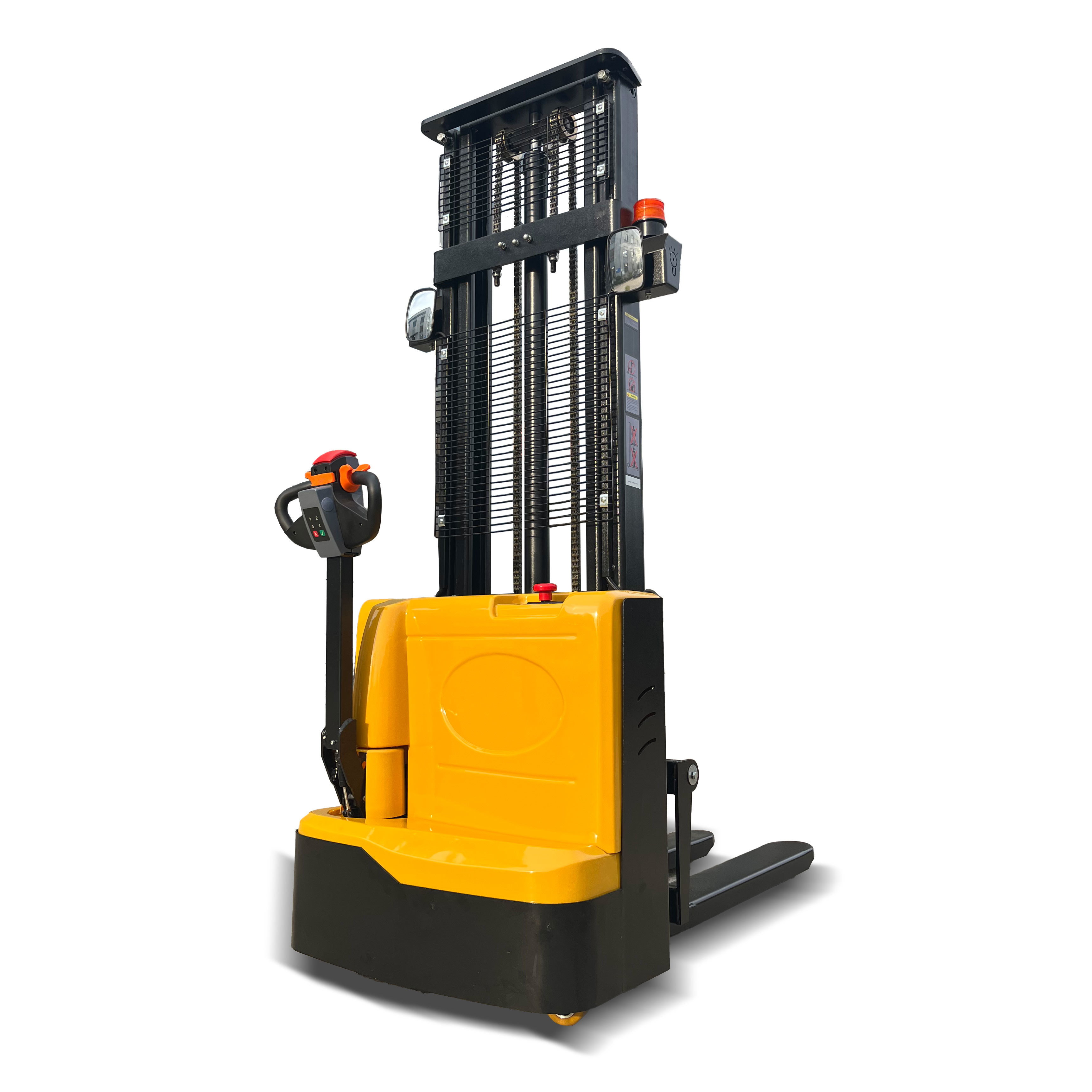

Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height

Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height
বেসিক ইনফরমেশন
উৎপত্তি স্থল: জিয়াংসু, চীন
পরিচিতিমুলক নাম: KAD
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: $1,500-1,800
ভালো দাম এখন যোগাযোগ
কাঁটা দৈর্ঘ্য: ১০৭০ মিমি ফর্কের প্রস্থ: 550/680 মিমি
লোড কেন্দ্র: 500 মিমি লোড ওজন: 1500 কেজি
ব্যাটারি ভোল্টেজ: 24 ভি ব্যাটারি ক্ষমতা: 80আহ
লোড উচ্চতা: 3000-4500 মিমি মেশিনের ওজন: 650 কেজি
ন্যূনতম উত্তোলন উচ্চতা: 2080 মিমি সামগ্রিক মাত্রা: 1770x850x2080 মিমি
শক্তি উত্স: ডিসি মোটর ড্রাইভিং গতি: 5.0 মিমি/গুলি
উত্তোলন গতি: 140/135 মিমি/এস গতি অবতরণ: 150/155 মিমি/সেকেন্ড
সর্বাধিক গ্রেডিয়েন্ট: 7/5 °
বিশেষভাবে তুলে ধরা:

Electric pallet stacker 1500kg capacity

,

Electric pallet stacker 4500mm lift

,

Electric pallet stacker with warranty

Electric Stacker 2500 Lbs 4.5m Stacker Electric
Product Specifications
Attribute Value
Condition New
Fork Length 1070mm/customized
Fork Width 550/680mm/customized
Drive Type Other
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability Indoor Flooring, Outdoor Pavement, other
Load Center 500 mm
Load weight 1500KG
Battery 24V/80Ah
Battery type Lead acid battery
Load height 3000-4500mm
Machinery Test Report Provided
Warranty of core components 1 Year
Weight (KG) 650
Min. Lifting Height 2080mm
Overall Dimensions 1770(L)*850(w)*2080(h)
Power Source DC MOTOR
Warranty 1 Year
Type Powered Pallet Truck
Load Capacity 1 ton
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 0 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 1
The walkie stacker is easy to operate, requiring only basic training to master, making it suitable for various workers. Its compact size and light weight allow it to maneuver flexibly in tight spaces, ideal for use in warehouses and factories. It boasts strong safety features, including emergency brakes, speed limiters, and anti-slip functions, ensuring operator safety. Additionally, the walking operation method enables operators to have better control over the vehicle, reducing the risk of accidents.
Technical Specifications
Model CDDW10 CDDW15
Features Drive system Battery
Features Driving mode Walkie
Load Capacity Q KG 1000
Load Center C MM 500
Weight Weight(With battery) KG 480/495/515/535
Wheels Material PU
Size Lifting Height H3 MM 1600/2000/2500/3000/4000
Lowest Mast H1 MM 2080/1580/1830/2080/1580
Max.Height when operating H4 MM 2080/2730/3230/3730/4750
Min.Height of Fork H13 MM ≤90
Length L1 MM 1770
Width B1 MM 850
Size Fork Length L MM 1070
Wheelbase Y MM 1250
Fork Outside Width B5 MM 680
Fork Inside Width MM 305
Min.Turning Radius WA MM 1390
Performance Driving Speed (Empty/Full Load) MM/S 5.0/5.0
Lifting Speed (Empty/Full Load) MM/S 140/135
Descending Speed (Empty/Full Load) MM/S 150/155
Max.Gradient (Empty/Full Load) ° 7/5
Brake Electromagnetic brake
Driving Motor KW DC/0.75
Lifting Motor KW DC/2.2
Battery Capacity V/Ah 24/80/100;Li/gel
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 2 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 3 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 4 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 5
Main Features
  • Using Curtis controller, which can be serviced by any forklift service company worldwide
  • Integrated charger provides flexibility in modern supply chains
  • Maintenance-free batteries, no need to add water
  • High strength fork for durability
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 6 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 7
Main Parts
Name: Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD sensitively. Uses Curtis brand accelerator to ensure safe operation.
Night Operation Lights
Plays a great role in warehouses with insufficient lighting.
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 8 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 9
Safety Features
Reverse rearview mirror and buzzing sound for enhanced safety. Some companies omit these safety devices to save costs, but we include them while maintaining competitive pricing.
Durable Mast
High strength durable mast, which is 3-stage and supports heavy loads at 4-4.5m height.
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 10 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 11 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 12 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 13 Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 14
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Electric Pallet Stacker 1500KG Load Capacity 4500mm Lift Height 15
